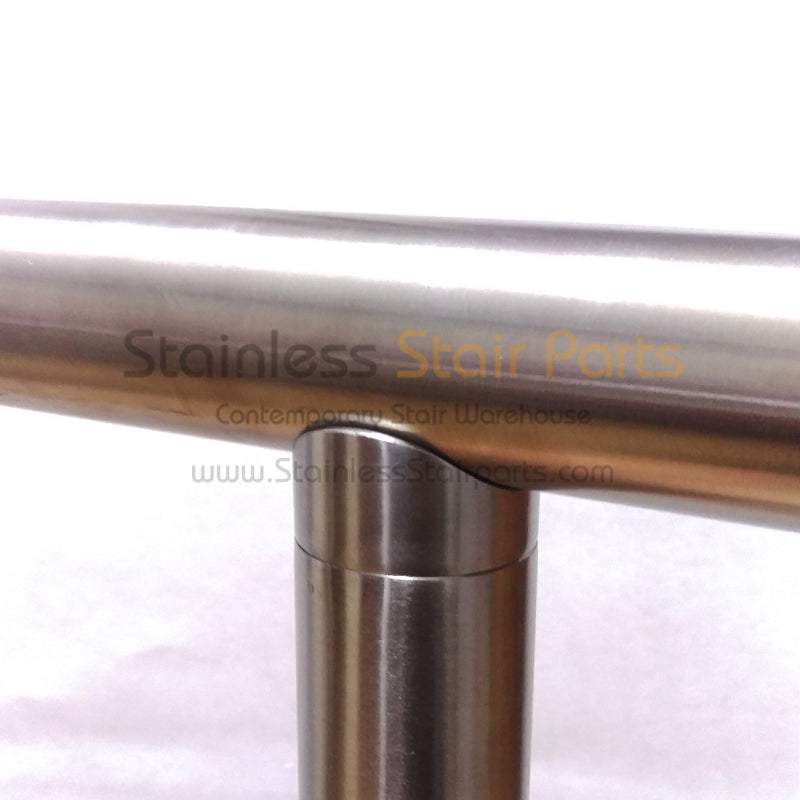

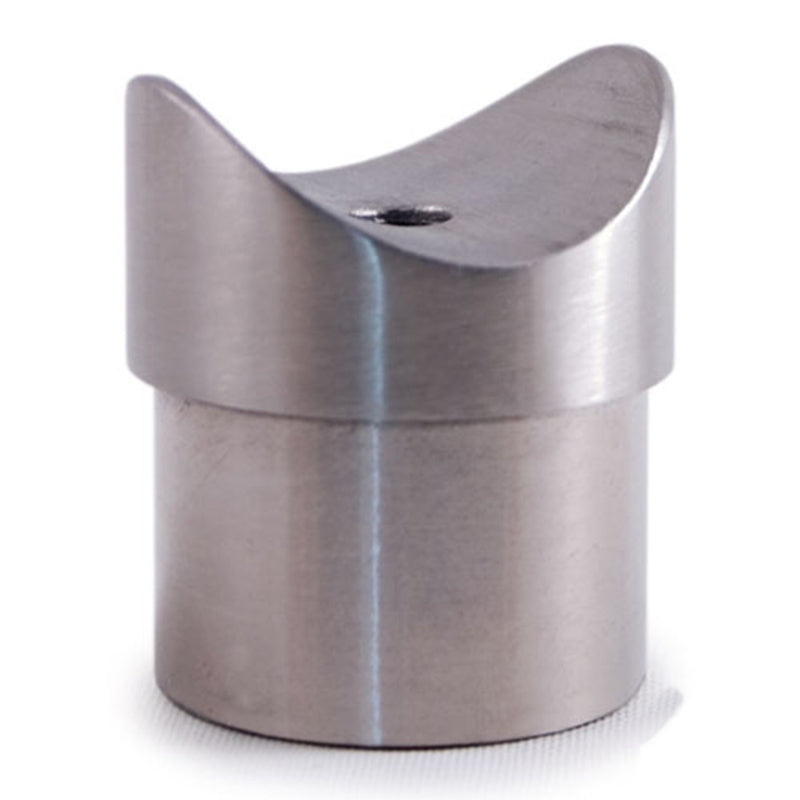

The E491 Fixed Handrail Support is used to run railing directly over the newel post and to terminate stainless steel railing tube against round newels.
- Made of AISI 316 Marine Grade Stainless Steel
- Cost effective alternative to welding
- Ideal for both interior and exterior use
- Fitts 1-5/8" (42.4mm) diameter stainless steel railing
- Use 1 per each Newel Post

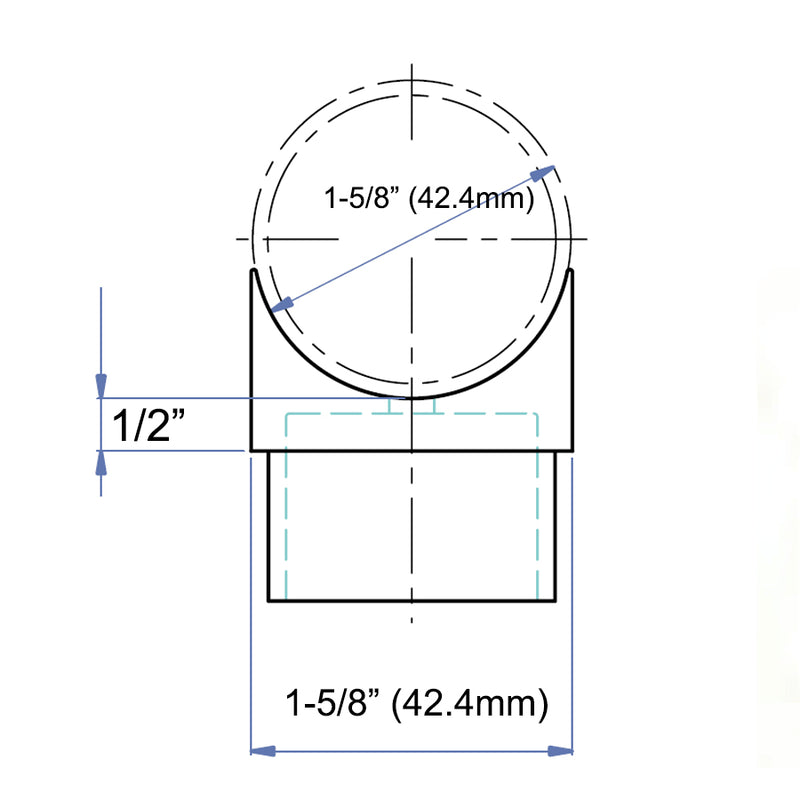

- External Diameter: 1-5/8" (42.4mm)
-
Height: 2-9/16" - Thickness: 3/32"

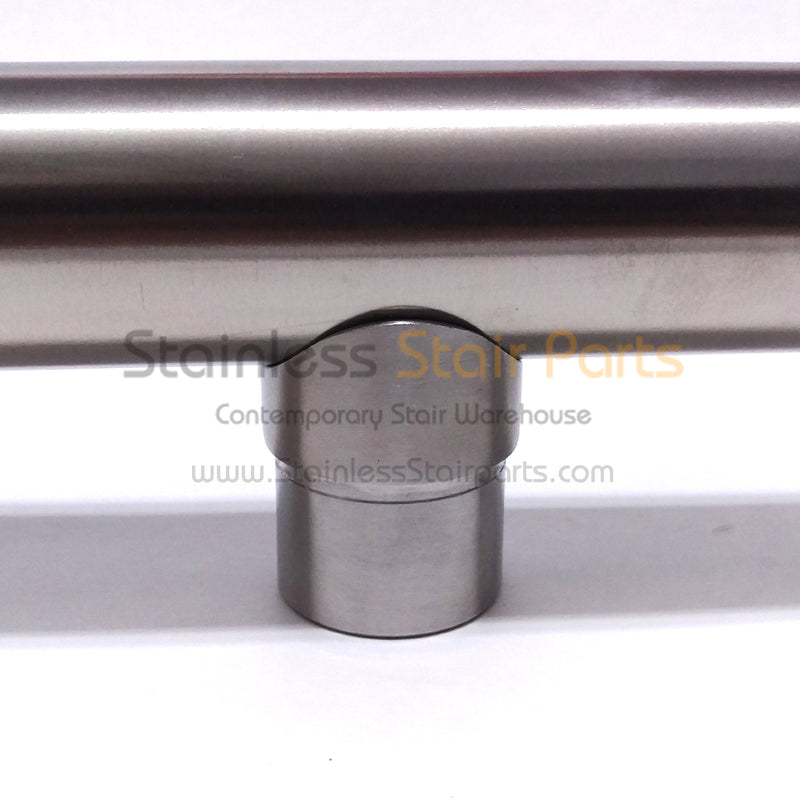

- Will raise the handrail 12mm (1/2") from the top of the newel post to the bottom of the handrail
- Fix using high strength stainless steel adhesive
- For permanent and strong connections, we recommend using our high strength stainless steel adhesive E4054
Installation is quick and easy, simply glue the ends with a high strength stainless steel adhesive, insert into your tube and leave to set.
If you can’t find the product you are looking for, need additional assistance or have any questions, please contact our sales team at (844) 424-0112 or e-mail us support@stainlessstairparts.com
We are happy to answer any questions you may have about our stair products, installation or help you place an order.
